Product Review: Synrax Onyx Mini

Tuesday, January 20th, 2009 at 12:56 pm by DigitalSignageBlog, 0 Comments »

Reviewed By: Advertise Me

Price Range (RRP): AU$700 – $900 (depending on the exact hardware requirements)

What’s black, compact, fast, affordable and can be used for almost any industry environment?
It’s the Synrax Onyx Mini.

We had the privilege to be one of the first companies to review this product. Below is our findings but before we start with our product review here’s the product specifications.

Product Specs

The unit offers the following features:

Intel Mobile Processor 2.0Ghz Single Core or Dual Core (you can almost run any software application with this processor speed)
1GB DDR2 SDRAM (can be upgraded to 2G if you need to run memory intensive applications)
High Definition Output via HDMI – (great feature to have if you need high quality video output, especially if you’re deciding to use this for digital signage or multimedia applications. It also has the standard video connectors such as VGA and S-Video)
HD Audio via Optical SPDIF – (great for capturing your audience using sound)
6 USB ports (2 at the front and 4 at the back. Just think of how many USB devices you can connect to the unit)
Storage Options (the unit supports SSD compact flash cards, IDE and SATA HHD. This is pretty standard these days but it’s definately good to have the flexibility to choose your own storage device)
Ethernet Port (the unit supports 1Gbps speeds. Once again with this speed, the unit is ideal for streaming high quality video over the network)

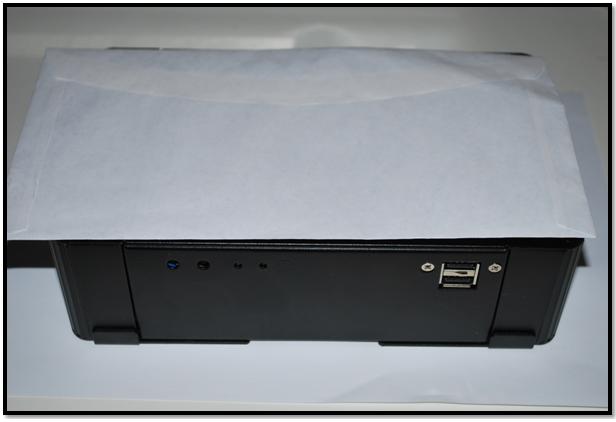

212mm x 126mm x 62mm Enclosure (It’s small…in terms of size, the Onyx Mini is almost the same size of a DL envelope. Here’s a picture to prove it)

Performance

For the digital signage industry, the Onyx Mini meets the video and processor performance requirements to run almost any high definition video or digital signage application. We tested this by playing a sample 1080p high definition file (the video was downloaded from the Microsoft Site – WMV HD Content Showcase) through Windows Media player and we didn’t notice any lags or freezes. The CPU utilisation didn’t even hit the 100% mark. Here’s a video to prove it:

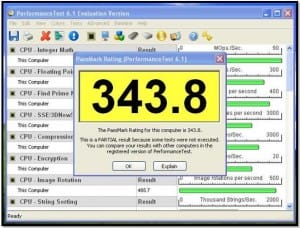

We also used a trial version of PerformanceTest by passmark.com and ran several performance tests, and here are the results. The unit received a passmark rating of 343.8. Visit passmark.com for further details about this rating.

Our verdict

Bad

We couldn’t find anything bad about the unit except that the fan noise was quite loud. In any case, this is something minor but we did find out from the vendor that the noise was actually related to the size of the air holes on the side of the unit.
Another minor issue was that the unit had no labels at the front to indicate which button was the power and reset. It took us a while to figure this out.

Please note that the vendor will address both of the above issues in the next batch of units.

Good

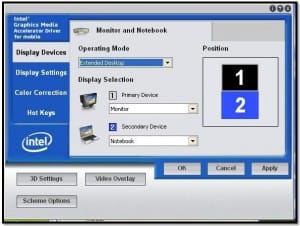

The Mobile Intel 965 Express Chipset video graphics card supports dual screens – this is quite handy to have especially if you intend to run a solution which requires you to drive either the same or different content to two screens. It also allows you to position both screens in different layouts. I love this feature!

It can be used in almost any industry, whether its the digital signage, medical, home (great for media centers or desktop pc), retail business, KIOSK, and the list goes on.
You can install and manage your OWN operating system – not limited to a particular manufacturer or system application
Has very good ventilation – we left the unit on for several days and the casing never got “too hot to handle”
We like this unit and we have decided to include it in our product range so that our customers can benefit
